M20*1.5 Thread Pressure Gauge Calibrator Pneumatic Pressure Gauge Comparator

Pneumatic Pressure gauge comparator Hand Pump meter calibration

Description Pneumatic Pressure gauge comparator Hand Pump meter calibration

Y039 Hand-operating Pressure Pump is a air hand pressure pump. It is used to calibrate the pressure instruments of the industrial process in the field and/or control room. Also it can be used as a pressure generator for pressure instruments, All kinds of pressure transmitter and pressure gauge and other pressure instrument that with a pressure below 1.6mpa, can be calibrated by this pressure pump.

Specification Pneumatic Pressure gauge comparator Hand Pump meter calibration

Technical Data

1. Working pressure: 0-1.6MPa

2. Working temperature: -20 to 50℃

3. Dimension: 220x110x55mm

4. Weight: 0.5kg

5. Accessory

(1) Joint: 2pcs

(2) Quick connector: 2pcs

(3) Joint cap 4pcs

(4) Seal ring 4pcs

(5) Seal gasket 2pcs

(6) 6x1 nylon hose 2pcs

(7) Internal six angle screw wrench 1pc

Features Pneumatic Pressure Hand Pump

The hand-operating pressure pump is portable, light weight, wide temperature range, easy to use. There is a trim adjustment handle valve and switch valve on the pump, so that it is easy to adjust the pressure or exhaust the air. There are also matched fast connection, nylon hose, instrument connector etc, used to connect the calibrated instrument and the standard gauge. The pump is easy to carry and to connect with the calibrated instruments in the field, so the operator can calibrate the instrument fast and simple.

Structure and Principle

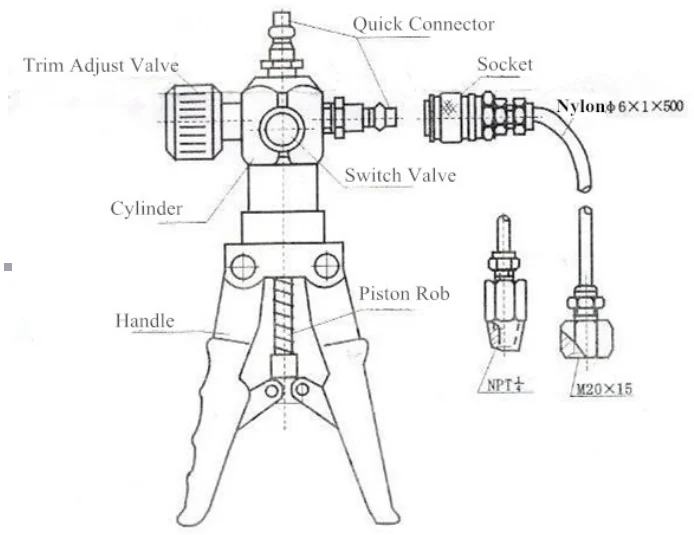

Y039 hand-operating pressure pump(see attachment) is compose of cylinder, piston rod, trim adjustment valve, switch valve, handle, quick connector etc. The quick connector is used to connect the calibrated instrument and the standard gauge. When use it, press and relive the handle for several times, to drive the piston rod reciprocating motion, change the volume of the cylinder, can produce the output pressure of 0-1.6mpa.

Use notes

1. The connector is used to connect standard gauge and calibrated instrument.

2. When generate the pressure, tight the switch valve clockwise, when unloading is the opposite.

3. Pay attention everywhere should be sealed during calibrate process, when the calibration finish it should be unloaded before removing the instrument, or else the instrument may be risk of damage.

4. When mounted instrument, threaded joints need wrapping tape to ensure the seal.
